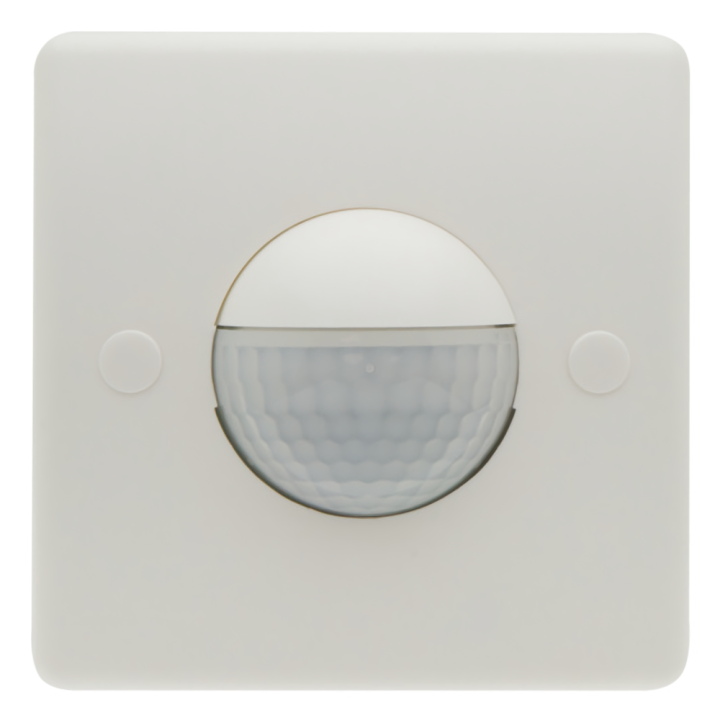

LUXOMAT 180-R [92610] 3-WIRE WALL PIR SWITCH

B.E.G. Luxomat 180-R three-wire wall-mounted infrared presence / motion detector with acoustic sensor.

Features:

• Wall motion detector with acoustic sensor

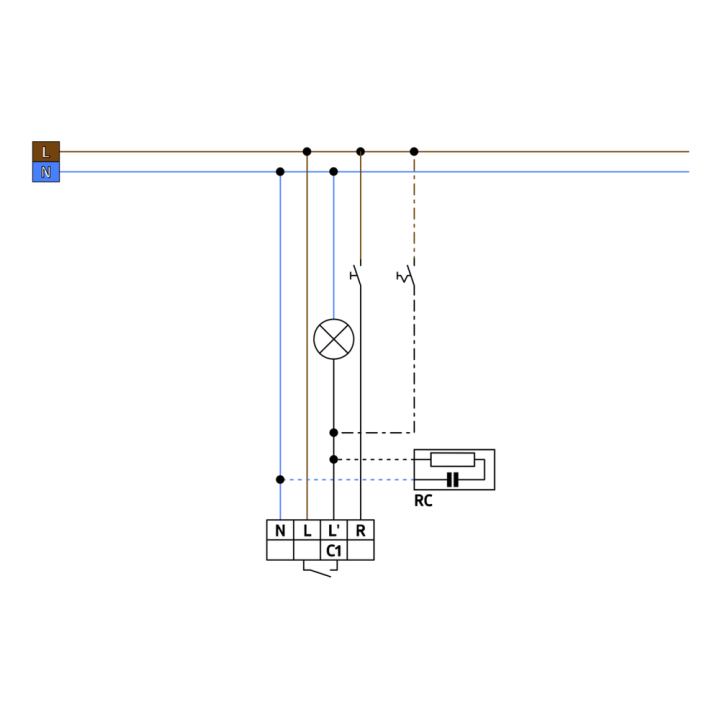

• Relay version with three-wire technology
• Acoustic sensor independently adjustable
• Noise automatically extends follow-up time
• With already mounted frame

Specifications:

• Model: 92610
• Voltage: 110V to 240V AC, 50 / 60 Hz
• Size: 87 mm x 87 mm x 61 mm
• Output voltage: 110V to 240V AC
• Power consumption: Approx. 0.5W
• Detection area: Horizontal 180°
• Range: Max. 10 metres across, max. 3 metres towards
• Monitored area (tangential movement): 157 m², 1.1 metres mounting height
• Mounting height: 1 metres min., 2.2 metres max., 1.1 metres recommended
• Degree / class of protection: IP20, class II
• Ambient temperature: -25 °C to 50 °C
• Housing: Polycarbonate, UV-resistant
• Switching power (ohmic load): 2,300W, cos φ = 1
• Switching power (inductive load): 1,150 VA, cos φ = 0.5
• Switching power (LED): 300W LED, max. inrush current Ip (20 ms) = 165A, max. inrush current Ip (200 µs) = 800A
• Follow-up time: 15 sec. to 16 min., pulse
• Switch-on threshold: 40 to 2,000 lux
