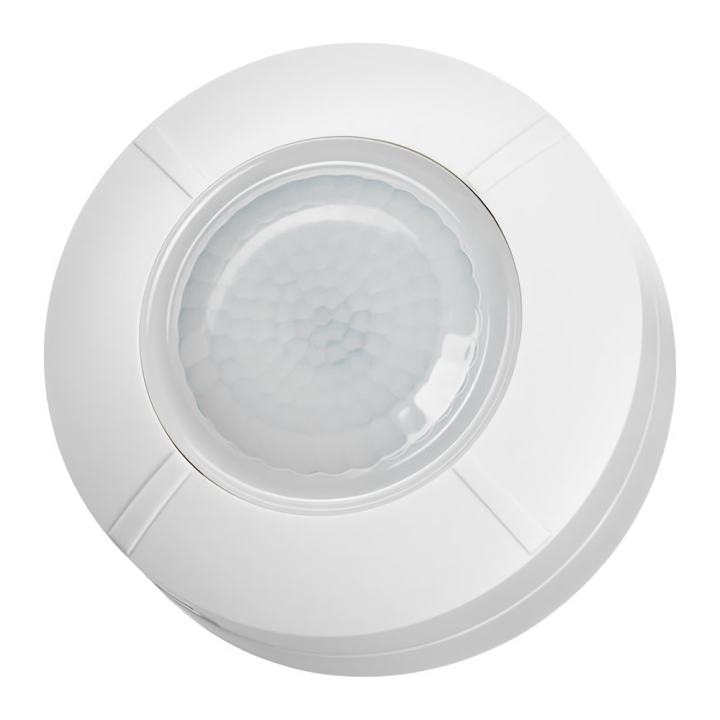

TIMEGUARD SLW360N CEILING PIR 360° 2400W/100W LED IP44

The Timeguard SLW360N is a passive infrared (PIR) sensor in white, for presence and motion detection within a 360° area. It is suitable for switching 250W of LED lighting, 2,000W of halogen lighting, 500W of fluorescent lighting or fans up to 75W.

Features:

• Total PIR switching: 2,000W halogen, 500W fluorescent, 250W LED lighting, 75W fan
• Slimline sensor head design
• 360° area of detection with up to an eight-metre detection range for motion and four metres for presence detection at a three-metre mounting height
• IP44 weatherproof rating (internal use only)
• Manual override
• Adjustable time setting, 3 seconds to 18 minutes
• Adjustable 1 to 1,000 lux setting

Specifications:

• Operating voltage: 230V AC
• 1 or 2 channel: 1 channel
• Switching capacity - LED: 250W
• Switching capacity - fluorescent: 500W
• Switching capacity - incandescent / halogen: 2,000W
• Switching capacity - fan: 75W
• IP rating: IP44
• Detection range (max.): 8 metres
• Angle of detection: 360°
• Light ON time after last detection (adjustable): 3 seconds (min.), 18 minutes (max.)
• Permanent ON facility: Electronic
• Adjustable light level control: Yes
• Size: 53 mm x 103 mm x 103 mm
