GREY JUNCTION BOX 4mm² 5-POLE 85x85x51mm IP66 [308/5 LG]

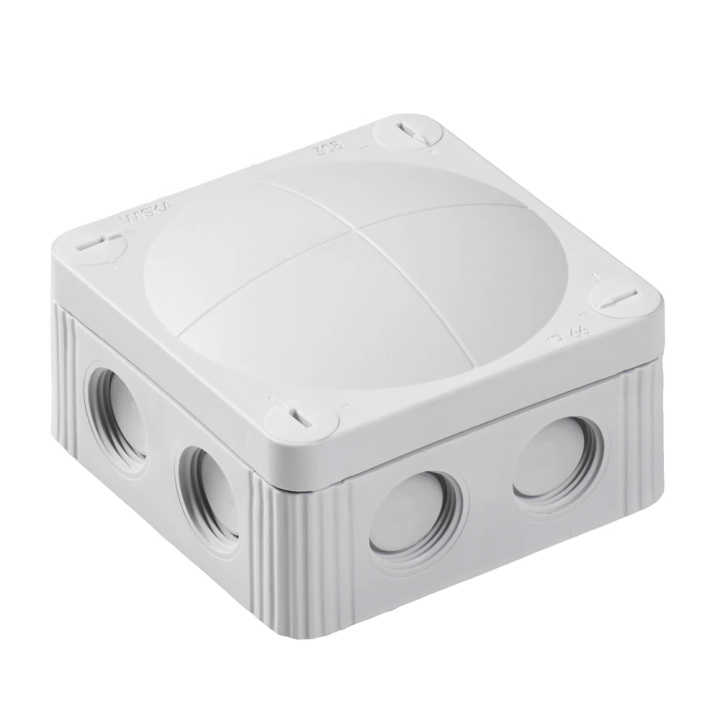

Wiska COMBI 308/5 LG grey junction box with terminal block.

Features:

• 4 x internal openings outside of the sealing area for fixing / mounting

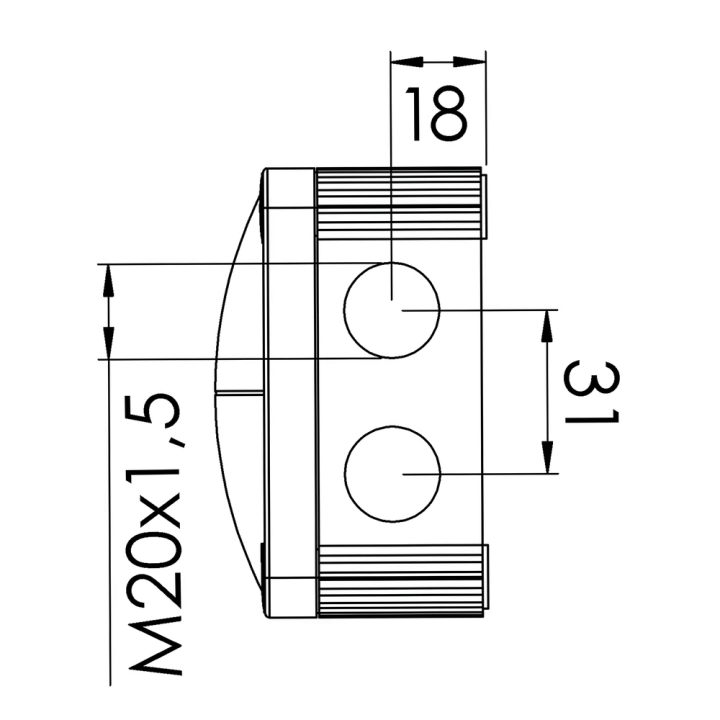

• 8 x M20 threaded membrane entries
• 4 x captive cover screws
• Terminal block included (5-pole, 4 mm²)

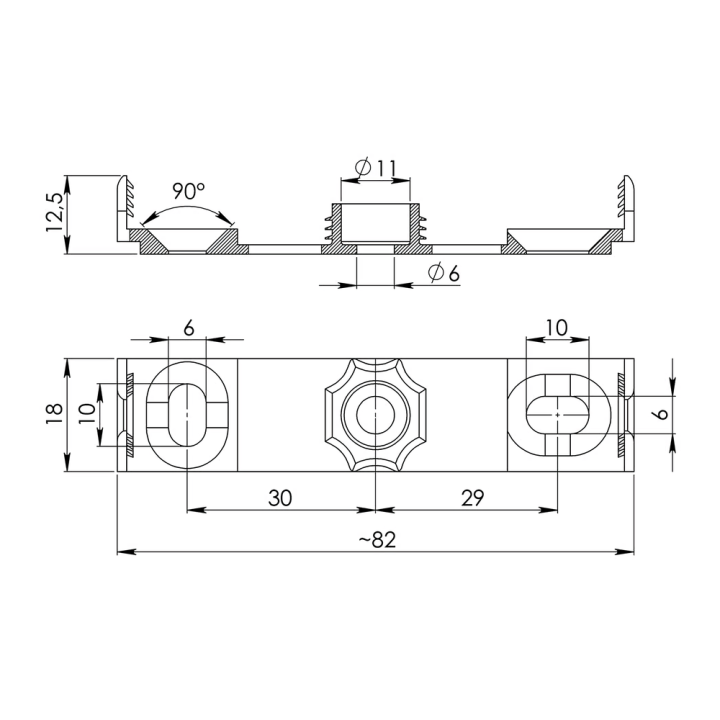

• Mounting clip included

Specifications:

• Model: 308/5 LG
• Colour: grey
• IP rating: IP66 (membrane entry), IP67 (threaded entry and gland)

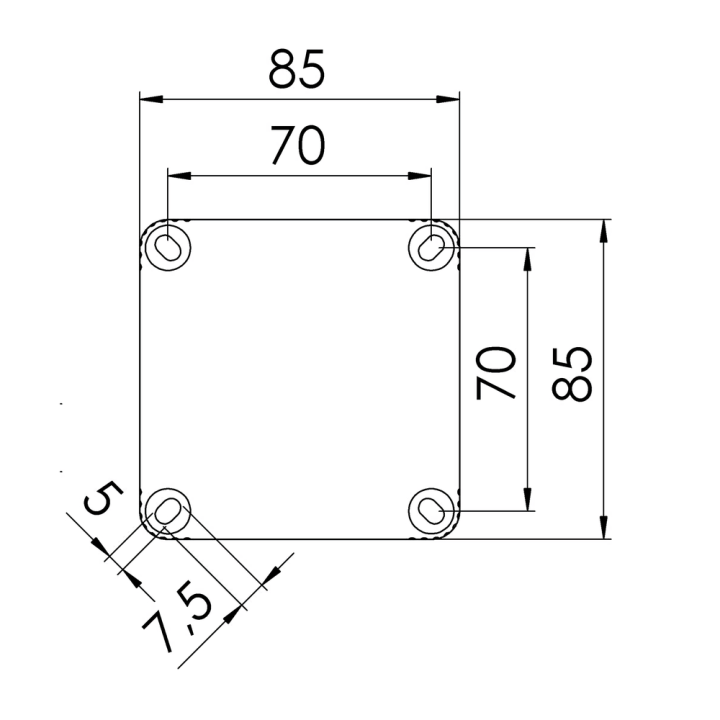

• Size: 85 mm x 85 mm x 51 mm (external)
• Operating temperature: -30 °C to 100 °C
• Current: 32A
• Voltage: 400V
• Terminals / poles: 5 x 4 mm²
• Ø cable: 3 mm to 12 mm
