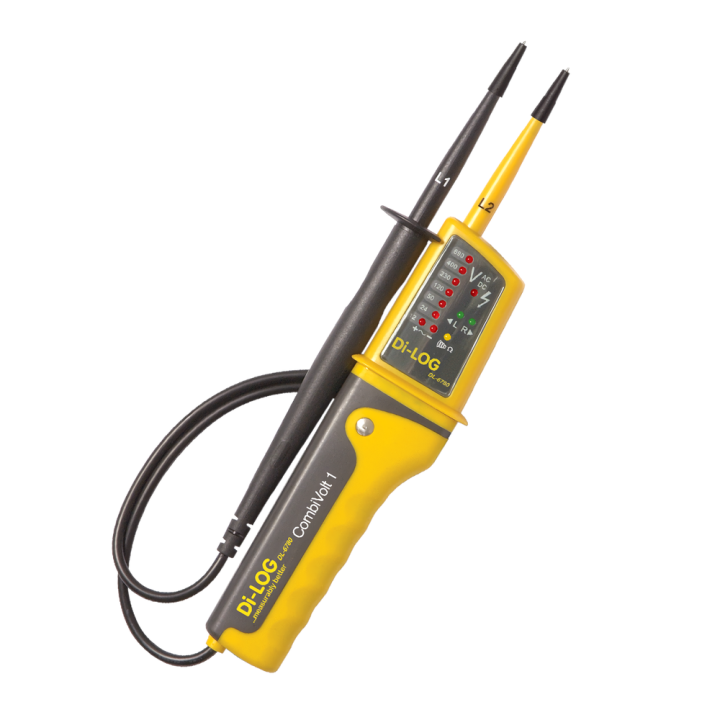

DI-LOG DL6780 COMBIVOLT1 VOLTAGE / CONTINUITY TESTER LED

The Di-LOG DL6780 CombiVolt 1 is a three-in-one tester (voltage, continuity and phase rotation) with a rugged, ergonomically formed housing for perfect handling.

Features:

• Voltage test AC / DC
• Single pole voltage indication
• Continuity test
• Phase rotation test
• Torch

Specifications:

• Voltage display: 12V to 690V AC / DC
• LED steps: 12V, 24V, 50V, 120V, 230V, 400V, 690V
• Voltage detection: Automatic
• Acoustic signal: AC voltage - DC voltage
• Polarity detection: Positive & negative
• Response time: LED < 0.1s
• Frequency range: 0 Hz to 400 Hz
• Peak current: Is < 0.3A / Is (after 5s) < 3.5 mA
• Operation time: 30s
• Recovery time: 10 min.
• Auto power on: < 12V AC / DC
• Single pole voltage detection, voltage range: 100V to 690V AC
• Single pole voltage detection, frequency range: 50 Hz to 400 Hz
• Continuity, measuring range: 0&ohm; to 400 K&ohm;
• Phase rotation test, voltage range: 100V to 690V
• Phase rotation test, frequency: 45 Hz to 65 Hz
• Over voltage protection: 690V AC / DC
• Power supply: 2 x 1.5V batteries (AAA, LR03, MN2400)
• Size: 255mm x 70mm x 28mm
• Standards: BS EN 64213-3:2015
