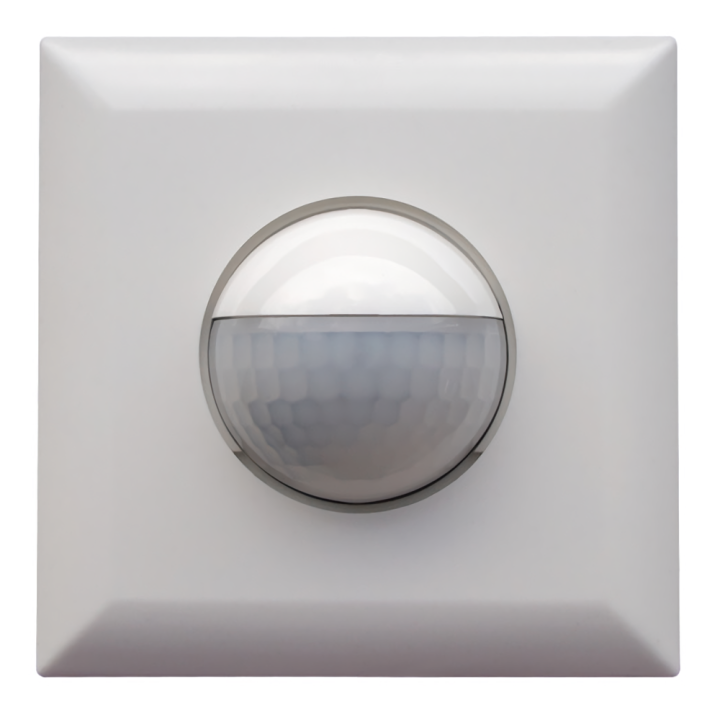

LUXOMAT 180-NR/2W [92716] 2-WIRE WALL PIR SWITCH

B.E.G. Luxomat 180-NR/2W two-wire wall mounted infrared presence / motion detector with acoustic sensor.

B.E.G. Luxomat 180-NR/2W two-wire wall-mounted infrared presence / motion detector with acoustic sensor.

Wall motion detector with acoustic sensor
With removable frame cover
Relay version with 2-wire technology thanks to inbuilt battery
Acoustic sensor independently adjustable
Noise automatically extends follow-up time
Mounted frame, removable cover and arc extinction kit included
Application examples: monitoring of public lavatories, corridors, archive rooms, conference rooms

Model: 92716
Voltage: 110V to 240V AC, 50 Hz / 60 Hz
Battery: 4 x NiMH, 1.2V, 200 mAh
Size: 88 mm x 88 mm x 46 mm
Power consumption: < 1W
Detection area: Horizontal 180°
Range: Max. 10 metres across, max. 3 metres towards
Monitored area (tangential movement): 157 m², 1.1 metres mounting height
Mounting height: 1 metres min., 2.2 metres max., 1.1 metres recommended
Degree / class of protection: IP20, class II
Ambient temperature: 5 °C to 45 °C
Housing: Polycarbonate, UV-resistant
Switching power (ohmic load): 2,300W, cos φ = 1
Switching power (inductive load): 1,150 VA, cos φ = 0.5
Switching power (LED): 300W LED, max. inrush current Ip (20 ms) = 165A, max. inrush current Ip (200 µs) = 800A
Type of contact: 1 x µ-contact, N/O contact with tungsten pre-make contact
Follow-up time: 15 sec. to 60 min.
Switch-on threshold: 10 to 2,000 lux
